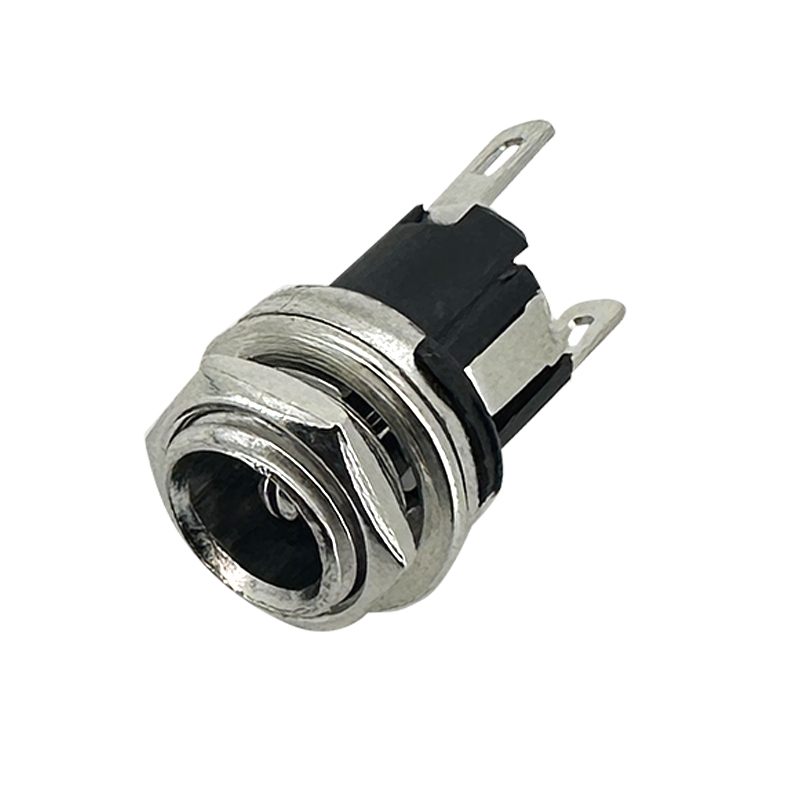

DC Power Connector ：RHTAYC-025B
RHT provides a wide selection of DIP DC Power Connectors, supporting reliable power connections for consumer electronics, communication devices, industrial equipment, power supply systems, and electronic control devices.
With various mounting styles, pin configurations, terminal designs, and structural options, our products meet different PCB layouts, through-hole mounting requirements, soldering conditions, and equipment integration needs.
RHT works closely with engineering teams to understand technical requirements and provide suitable DIP DC Power Connector solutions, supporting applications from sample evaluation and design verification to product integration and implementation.
Features
-Easy Plug-and-Play: Designed for simple insertion and removal, making setup and maintenance convenient.
-Compatibility: Often standardized, allowing for interchangeability across devices and manufacturers.
-Shielding: Some connectors include shielding to reduce electromagnetic interference (EMI).
-Weather Resistance: Certain models are designed to be weatherproof or waterproof for outdoor use.
Applications
1.Consumer Electronics
2.Telecommunications
3.Automotive.
4.Industrial Equipment
Specifications
Rated Load: DC 30V 0.5A
Contact resistance: 30mΩ, max
Insulation resistance: 100MΩ, min
Withstand Voltage: AC500V
Actuating Force: 3~20N
Life: 5000 cycles
Operating Temperature: -30ºC ~ 70ºC
Technical Documents
Please contact us for more information.
