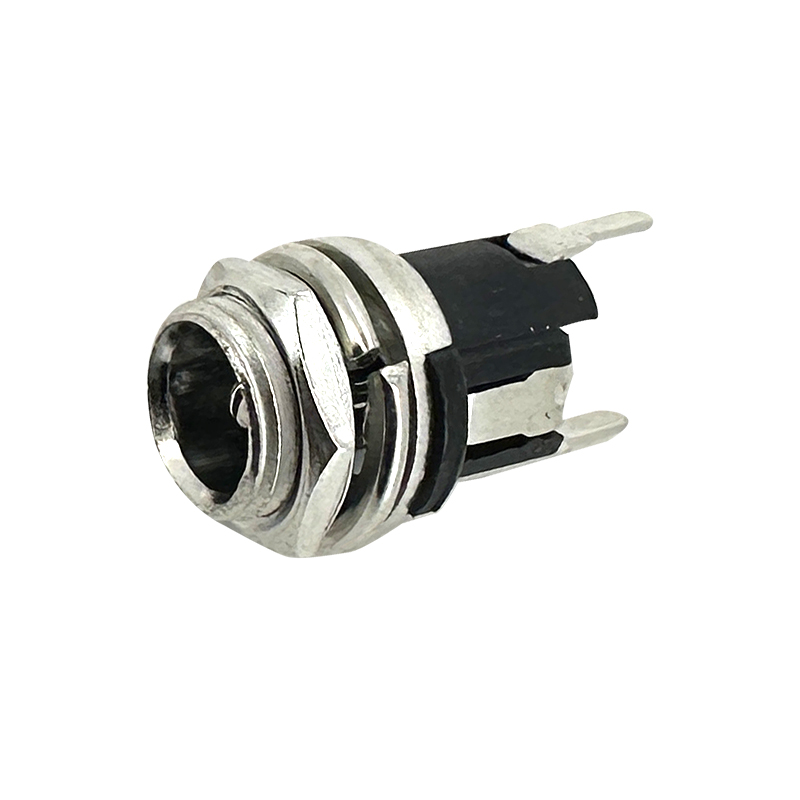

DC Power Connector：RHTAYC-025A
RHT provides a wide selection of DIP DC Power Connectors, supporting reliable power connections for consumer electronics, communication devices, industrial equipment, power supply systems, and electronic control devices.
With various mounting styles, pin configurations, terminal designs, and structural options, our products meet different PCB layouts, through-hole mounting requirements, soldering conditions, and equipment integration needs.
RHT works closely with engineering teams to understand technical requirements and provide suitable DIP DC Power Connector solutions, supporting applications from sample evaluation and design verification to product integration and implementation.
Features
-Current Rating: Ranges from 0.5A to 10A+, depending on connector size and material.
-Voltage Rating: Typically 5V, 12V, 24V, 48V, and higher depending on the application.
-Barrel Plug & Jack (Coaxial) – Common in laptops, routers, and power adapters.
-Durability: Locking DC Connectors – Prevent accidental disconnection.
Applications
1.Consumer Electronics
2.Industrial Equipment & Automation
3.Automotive & Transportation
4.Medical & Healthcare Devices
Specifications
Rated Load: DC 30V 0.5A
Contact resistance: 30mΩ, max
Insulation resistance: 100MΩ, min
Withstand Voltage: AC500V
Actuating Force: 3~20N
Life: 5000 cycles
Operating Temperature: -30ºC ~ 70ºC
Technical Documents
Please contact us for more information.
