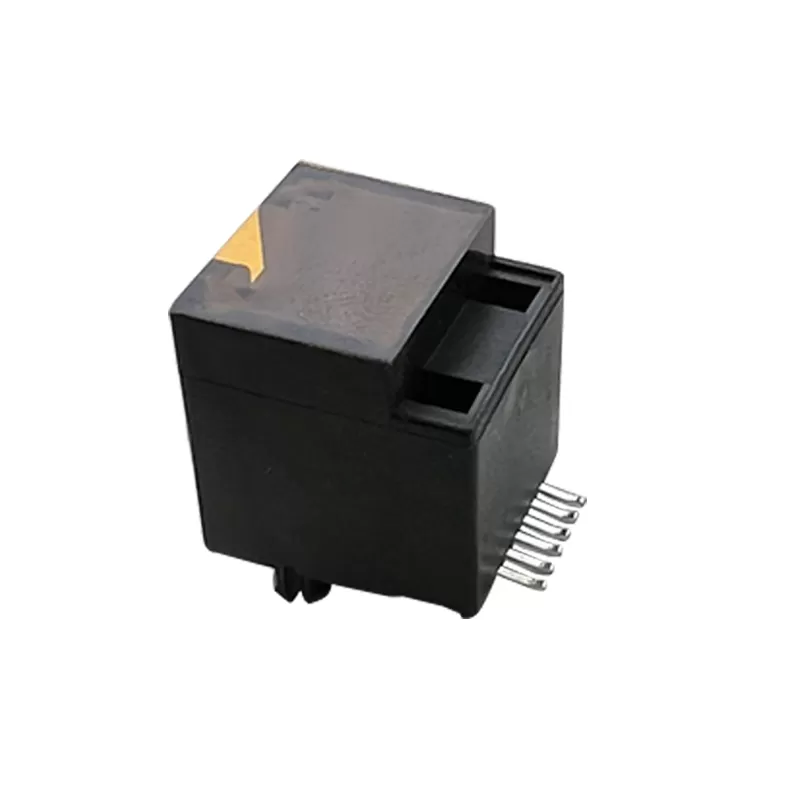

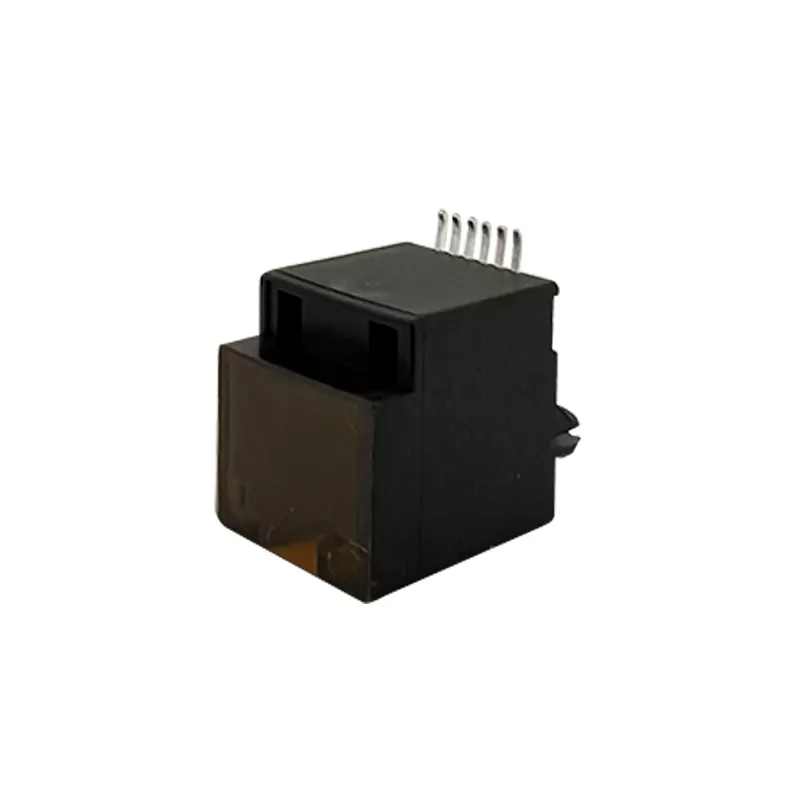

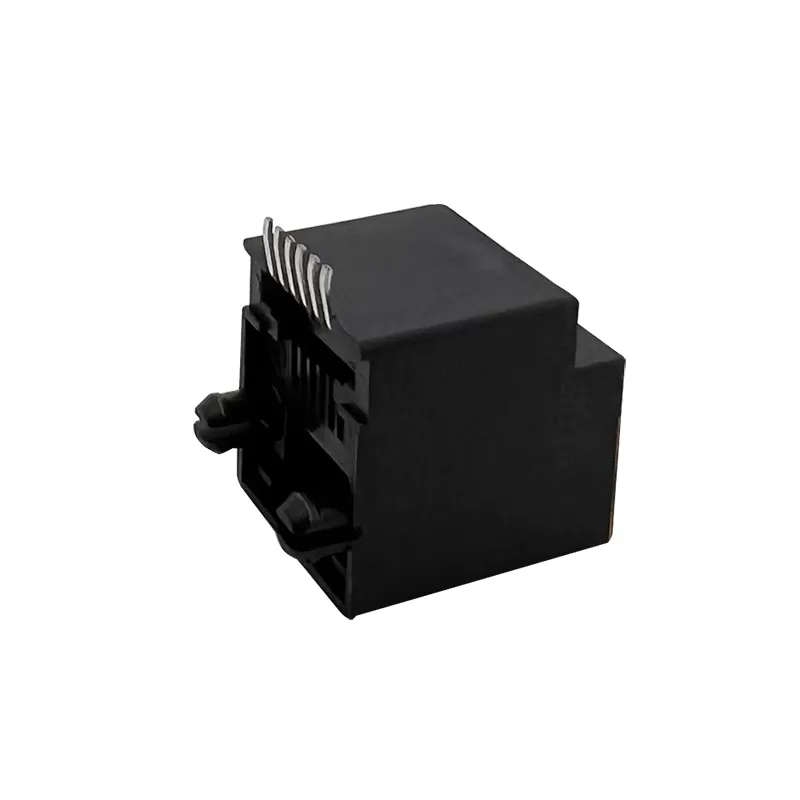

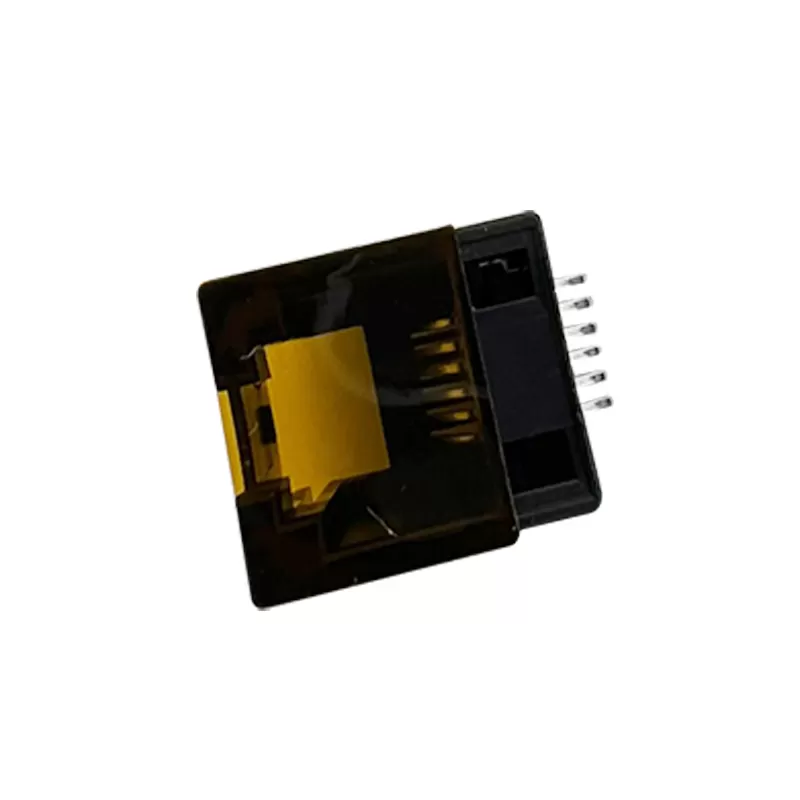

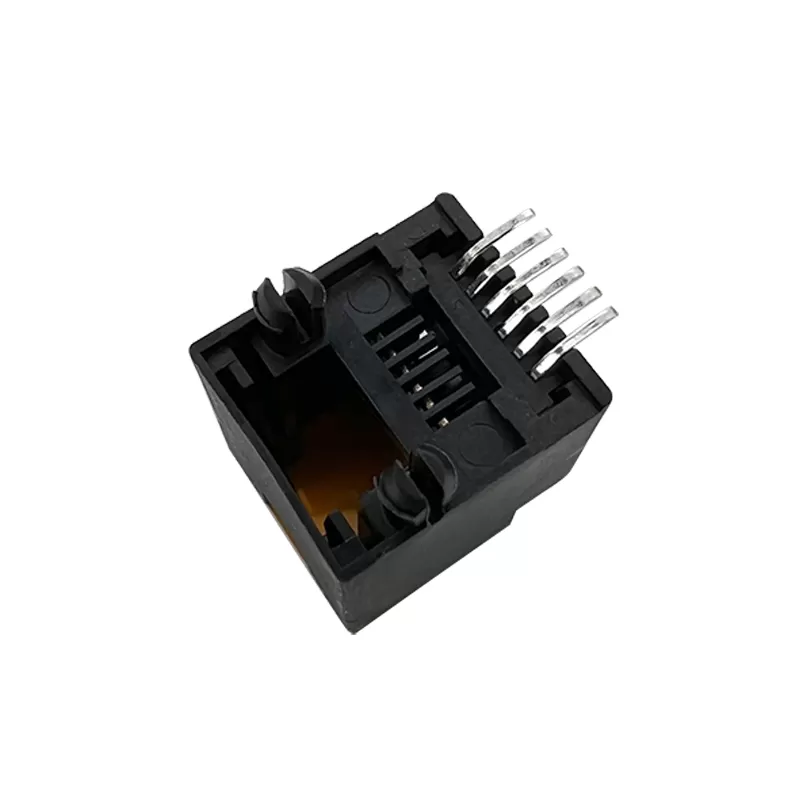

SMT Modular Jack RJ12:RHTLYMT-RJ12-6P
SMT modular jacks is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SMT modular jacks. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-SMT Mount Design : Easy surface-mount installation, compatible with automated PCB assembly.
-6P RJ12 Modular Interface :Standard 6-position connector for reliable signal transmission.
-Durable Contact Material : High-quality metals ensure long mechanical life and stable electrical performance.
-Compact & Robust Construction: Space-saving design with excellent durability for industrial and consumer applications
Applications
1.Telecommunication Systems
2.Networking Equipment
3.Consumer Electronics
4.Industrial Control
Specifications
SMT Modular Jack RJ12
ELECTRICAL
1.Voltage Rating: 125VAC
2.Current Rating: 1.5A
3.Contact Resistance: 30MΩ Max.
4.Insulation Resistance: 500MΩ Min.@500VDC
5.Withstanding Resistance :1000VAC RMS. 50Hz 1minute
MATERIALS
1.Housing: High Temp. Thermoplastic Flammability UL 94V-0
2.Contact: Phosphor Bronze Flat Pin
3.Plating:Gold Plating over nickel in contact,Tin Planting over nickel in solder area
MECHANICAL
1.Durability: 750 cycles Min.
2.PCB Retention pre-solder: 1 LB Min.
ENVIRONMENTAL
1.Storage:-40ºC~+80ºC
Technical Documents
Please contact us for more information.
