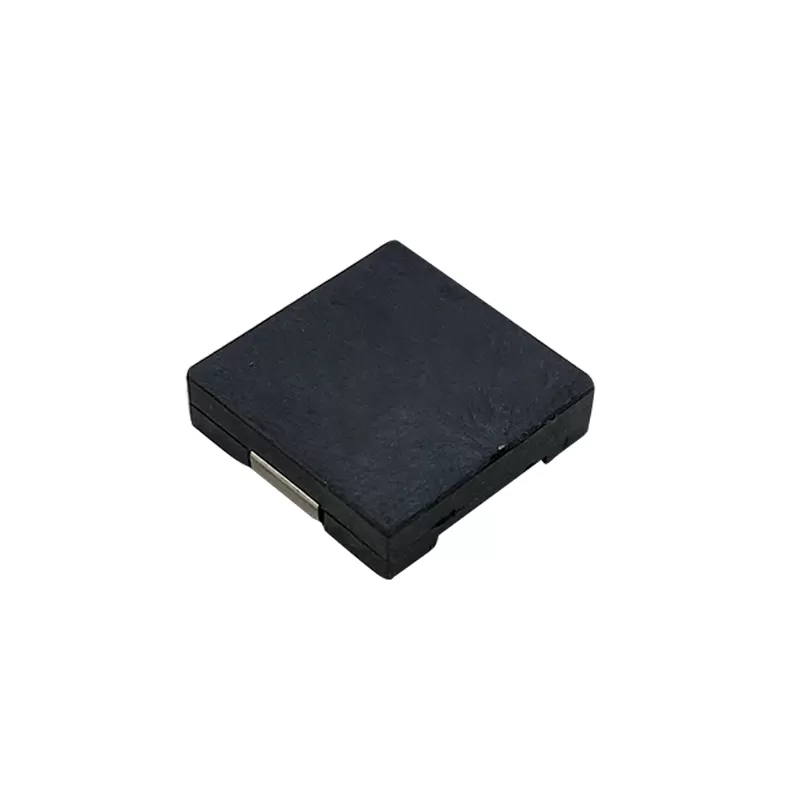

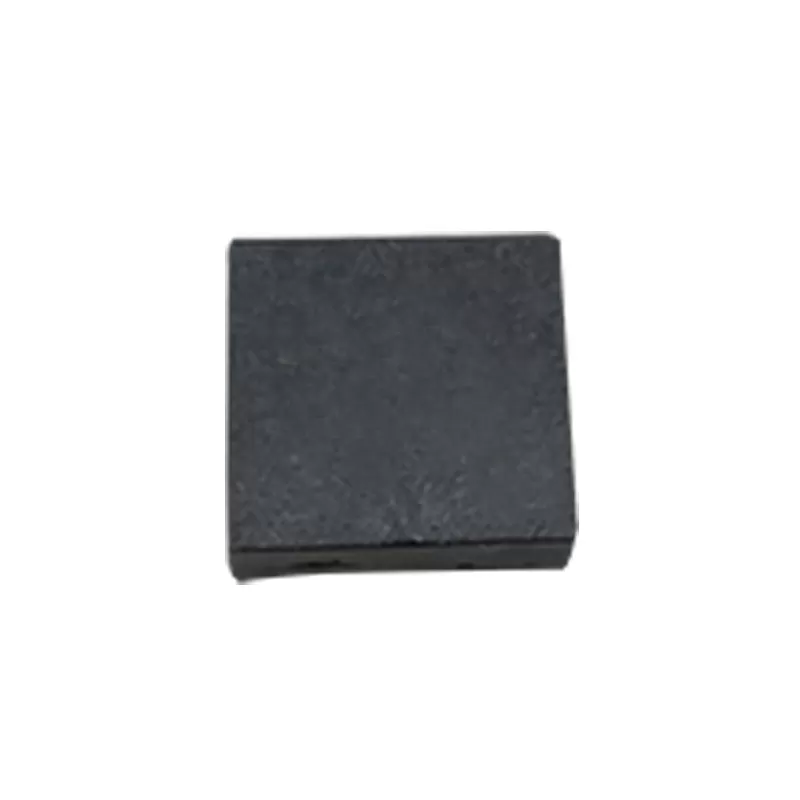

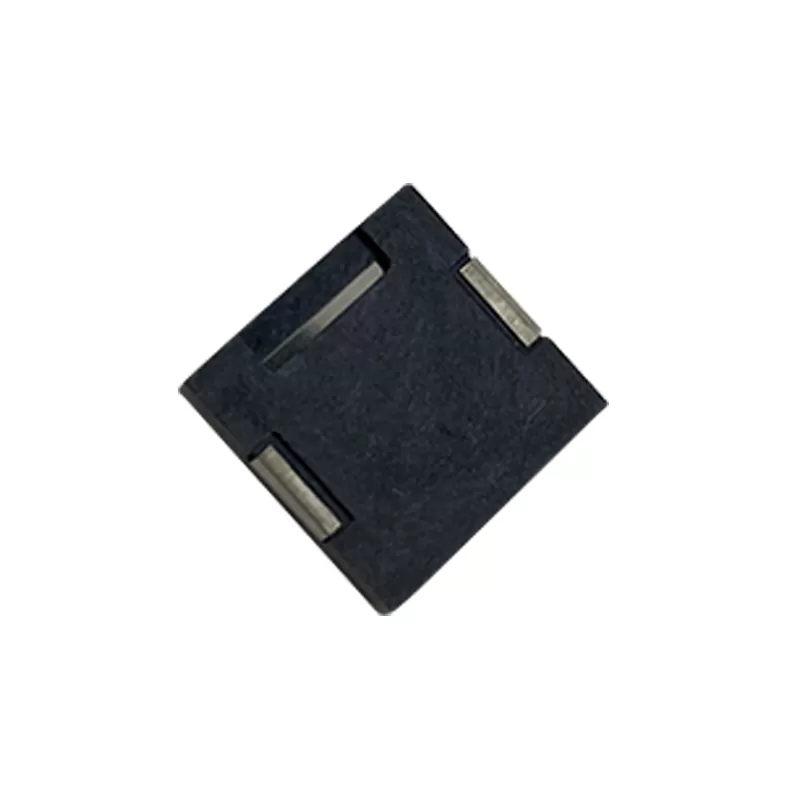

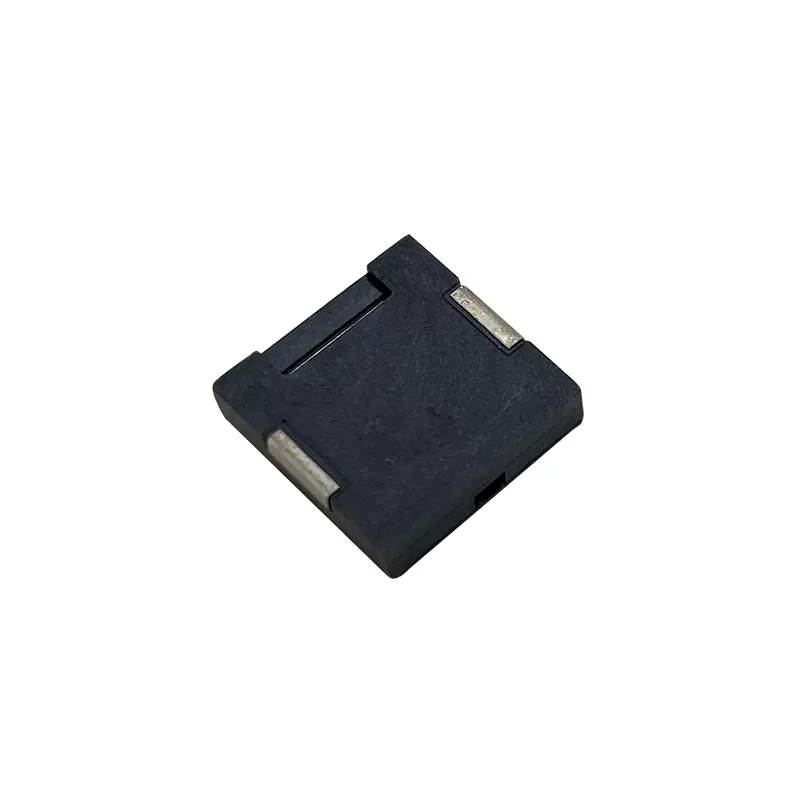

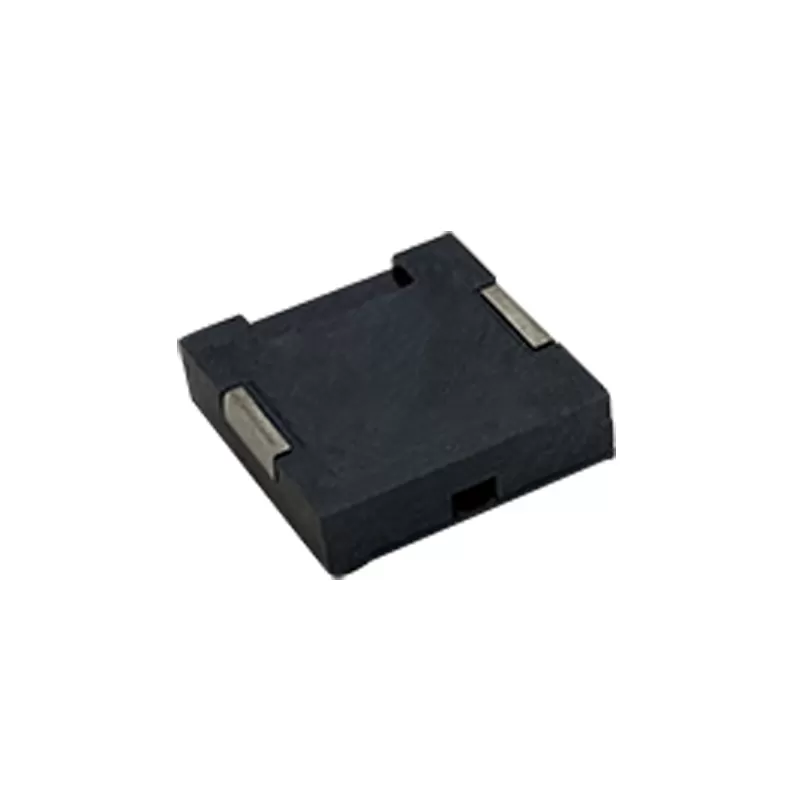

SMD Piezo Buzzer：RHTCYMT-12x03

Series P/N:RHTCYMT-12x03

SMD magnetic buzzers is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of SMD magnetic buzzers . Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

3D(IGS / STP)Drawing

Product parameter:

Features

-ompact SMD package design suitable for high-density PCB layouts and space-limited electronic devices
-Clear and stable sound output ensuring reliable audible alerts for alarms reminders and notifications
-Low power consumption helping improve overall energy efficiency in portable and battery-powered devices
-Long service life and high reliability suitable for continuous operation in various electronic products

Applications

1.Consumer Electronics
2.Industrial Electronics
3.Automotive Electronics
4.Communication Devices

Specifications

1 Rated Voltage 3 (Vp-p)

2 Resonance Frequency 4.0±0.5(KHz)

3 Max Input Voltage 25(Vp-p)

4 Capacitance at 120Hz 16000±30%(pF)

5 *Sound Output at 10cm ≥75(dB)

6 Operating Temperature (℃) -20～+70

Technical Documents

Please contact us for more information.
