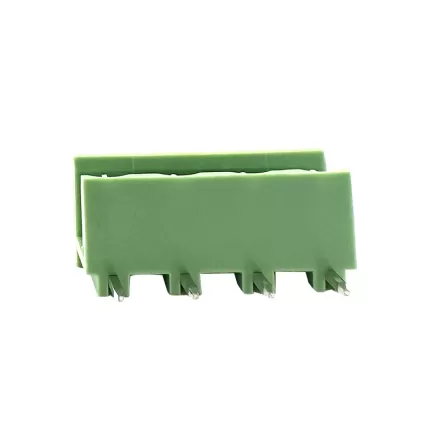

    7.50mm & 7.62mm Female Pluggable terminal block Right Angle:RHTBYDR-7.50&7.62

    7.50mm & 7.62mm Female Pluggable terminal block Right Angle:RHTBYDR-7.50&7.62

    Series P/N: RHTBYDR-7.50&7.62

    RHT provides a wide selection of Pluggable Terminal Blocks, supporting reliable electrical connections for industrial control systems, automation equipment, power supplies, and electronic devices.

    With various pole configurations, pitch sizes, current ratings, voltage options, and plug-in connection designs, our products meet different wiring, installation, and maintenance requirements.

    RHT works closely with engineering teams to provide suitable Pluggable Terminal Block solutions, from sample evaluation and design verification to product integration and technical support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Voltage Rating: Specifies the maximum voltage that can be applied across the terminals.

    -Wire Range: Indicates the range of wire gauges (thickness) that can be accommodated by the terminal block.

    -Additional Features: May include features like locking mechanisms, polarizing keys to prevent incorrect connections, or markings for easy identification.

    -Mounting Style: Right-angle orientation means the pins are perpendicular to the PCB surface, allowing for compact and space-saving installations.


    Applications

    1. Industrial Control Systems

    2. Power Distribution

    3. Telecommunications

    4. Automotive Electronics


    Specifications

    Electrical

    Rated voltage: 300V

    Rated current: 15A

    Contact resistance: 20mΩ

    Insulation resistance: 500MΩ/DC500V

    Withstanding Voltage: AC1600V/1Min

    Material

    Contact: Brass,Ni Plated

    Pin header: Brass, Tin plated

    Housing: PA66, UL94V-0

    Mechanical

    Temp. Range: -40ºC~+105ºC

    MAX Soldering: +250ºC for 5 Sec.




    Technical Documents

    Please contact us for more information.
