What are the main types of Connectors

In the rapidly evolving electrical and electronics industry, the role of connectors cannot be overlooked. Connectors are vital components that enable secure and reliable connections between wires, cables, and devices, ensuring not only efficient signal and power transmission but also safety and system stability. Choosing the right Connectors Supplier can significantly influence project outcomes, particularly when considering factors like durability, compliance with safety standards, and signal integrity. As industries pursue higher performance and reliability, advanced connectors are designed to address common issues such as poor contact, signal loss, and environmental exposure—critical concerns in applications ranging from automotive systems to industrial equipment.

Connector Materials

Definition of Connectors

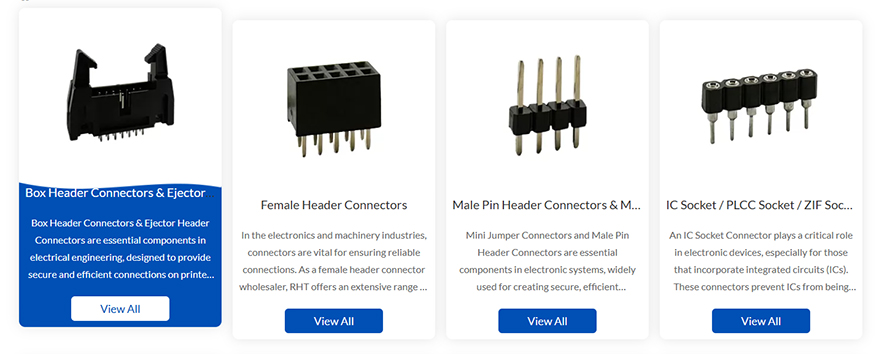

Connectors are electrical or electronic devices that join two or more conductors to ensure a stable electrical path. They are designed to provide secure connections while allowing easy assembly or disassembly when needed. Typically made of materials such as high-quality plastics, polyamide, or metal alloys like copper and brass, connectors offer excellent insulation, corrosion resistance, and conductivity. Connectors come in various forms, including board-to-board, wire-to-board, circular, and modular types, offering flexibility and adaptability for different applications.

Industry Term Analysis
Common terminology associated with connectors includes:

• Insulation Resistance: Measures how well the connector prevents electrical leakage, usually requiring values above 1,000 Megaohms.

• Current Rating: Indicates the maximum current the connector can safely carry without overheating, ranging from a few amperes to several tens of amperes depending on type.

• Voltage Rating: Specifies the highest voltage the connector can handle without breakdown, typically between 50V and 1,000V.

• IP Rating / Environmental Protection: Many connectors are rated for dust and water resistance, with common standards like IP67 or IP68.

Application Scenarios: Where Are Connectors Used?
Connectors demonstrate remarkable versatility across industries:

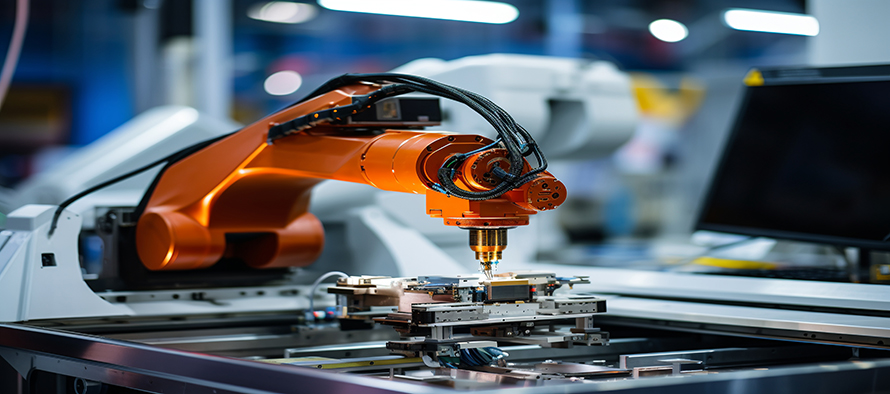

• Industrial Automation: Connectors link controllers, sensors, and actuators in production lines, ensuring accurate signal transmission and minimal downtime.

• Automotive Applications: Used in vehicles to connect lighting, infotainment, power systems, and safety electronics, enhancing reliability and performance.

• Telecommunications: Connectors ensure stable connections for network devices, supporting high-speed data transfer up to 10 Gbps or more.

• Consumer Electronics: Essential for smartphones, laptops, and IoT devices, connectors maintain compact and reliable connections in tight spaces.

Advantages of Connectors: Why They Matter
Connectors play a critical role in maintaining system reliability and efficiency. Their key benefits include:

• Enhanced Safety: Secure connections reduce the risk of electrical shorts, accidental disconnections, or fires.

• Simplified Maintenance: Easy assembly and disassembly allow technicians to replace or repair components without disrupting the entire system.

• Design Flexibility: Connectors help organize wiring, save space, and enable modular system design, supporting scalability and upgrades.

• Environmental Protection: Specialized connectors can resist dust, moisture, and extreme temperatures, ensuring performance in harsh environments.

Next Step Guidance
To maximize connector performance in your projects, review technical guides provided by your Connectors Supplier. These guides offer detailed specifications, best practices, and recommendations to select the ideal connector type for your application. Reputable brands like RHT provide high-quality solutions suitable for automotive, industrial, and telecommunications needs.

FAQ: Common Questions about Connectors

1. What materials are connectors made of?
   Connectors are typically made from high-quality plastics (e.g., polyamide), brass, copper alloys, or plated metals to ensure durability, conductivity, and insulation.

2. How do I choose the right connector?
   Consider factors such as current and voltage rating, type of connection (wire-to-board, board-to-board, circular), environmental conditions, and application requirements.

3. Are there connectors suitable for harsh environments?
   Yes, many connectors are designed for high-temperature, dustproof, or waterproof applications, with ratings such as IP67 or IP68, capable of withstanding extreme conditions.

By understanding the fundamentals, types, and advantages of connectors, you can make informed decisions that meet the requirements of your electrical or electronic projects efficiently and safely. For detailed specifications and options, explore catalogs from trusted suppliers like RHT.
