What Are D-Sub Connectors?

In today’s interconnected electronic systems, D-Sub connectors serve as reliable multi-pin interface solutions for signal and data transmission. From industrial automation to communication equipment, these connectors ensure stable electrical performance and mechanical security. As a professional China connector manufacturer, RHTECP delivers high-quality D-Sub connectors designed to solve common challenges such as signal interference, connection instability, and long-term durability concerns.

What Are D-Sub Connectors?

D-Sub connector (D-Subminiature connector) is a multi-pin electrical connector characterized by its D-shaped metal shield. This unique structure provides correct orientation, mechanical strength, and EMI shielding.

D-Sub connectors are available in various pin configurations, including 9-pin, 15-pin, 25-pin, 37-pin, and higher-density versions. They support signal, power, and data transmission across a wide range of electronic systems.

Why Are D-Sub Connectors Important?

D-Sub connectors are widely used because of their:

• Secure screw-lock fastening system

• Excellent EMI/RFI shielding performance

• Reliable multi-pin connectivity

• Strong mechanical durability

• Compatibility with industrial and communication standards

In environments where vibration, interference, or repeated mating cycles occur, D-Sub connectors maintain stable performance and signal integrity.

Application Scenarios for D-Sub Connectors

Industrial Automation

Used in control systems, PLC modules, servo drives, and machine interfaces.

Communication Equipment

Applied in networking hardware, signal distribution systems, and serial communication interfaces.

Computer & Peripheral Systems

Commonly found in legacy VGA interfaces, serial ports, and data transfer equipment.

Medical & Test Equipment

Provides secure and accurate signal transmission for diagnostic and measurement systems.

Aerospace & Transportation

Supports robust connectivity in environments requiring mechanical reliability and shielding protection.

Advantages of Using Quality D-Sub Connectors

Enhanced Durability
Metal shell construction and secure locking mechanisms ensure long service life.

Superior Shielding Performance
The D-shaped metal housing reduces electromagnetic interference.

Multiple Configuration Options

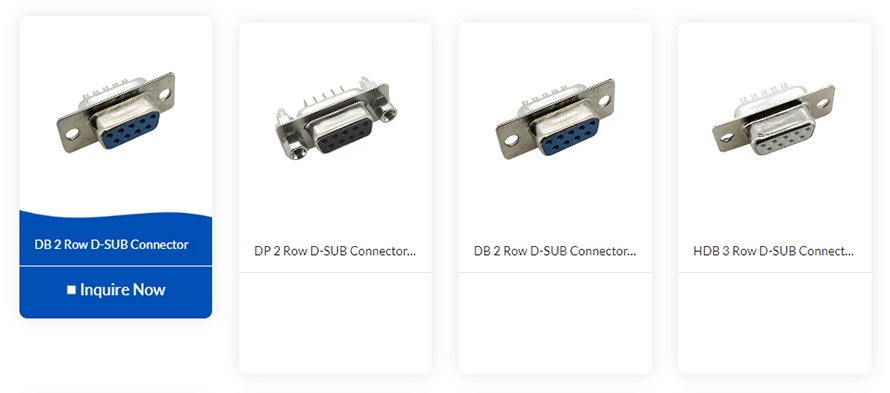

Available in standard, high-density, PCB-mount, solder cup, and cable-mount versions.

Stable Signal Transmission
Maintains reliable data and signal performance even under demanding conditions.

How to Select the Right D-Sub Connector

When choosing a D-Sub connector, consider:

• Pin count and density

• Mounting style (PCB mount, cable mount, panel mount)

• Termination type (solder cup, crimp, straight, right-angle)

• Shielding requirements

• Environmental durability

Consulting detailed specifications ensures optimal compatibility and performance.

FAQ

1. What is a D-Sub connector mainly used for?
It is used for multi-pin signal and data transmission in industrial, communication, and computer systems.

2. What does the “D” shape provide?
The D-shaped metal shell ensures correct alignment and improved EMI shielding.

3. Are D-Sub connectors suitable for industrial environments?
Yes, especially versions with metal shells and screw-lock mechanisms designed for vibration resistance.

4. Where can I source reliable D-Sub connectors?
RHTECP provides precision-engineered D-Sub connectors suitable for industrial automation, communications, medical, and aerospace applications.

Conclusion

D-Sub connectors remain a dependable solution for multi-pin electrical connectivity across various industries. With strong shielding, secure locking, and versatile configurations, they continue to support stable and efficient signal transmission in modern electronic systems.

RHTECP D-Sub Connectors — Reliable Multi-Pin Connectivity for Industrial and Communication Applications.
