What Are Box Header Connectors & Ejector Header Connectors?

Understanding Box Header Connectors & Ejector Header Connectors: Reliable PCB Interconnection for Modern Electronics

In today’s fast-evolving electronics industry, secure and efficient PCB interconnection solutions are critical to ensuring signal integrity, mechanical stability, and long-term system reliability. Box Header Connectors and Ejector Header Connectors play a vital role in delivering precise, stable, and space-efficient board-to-cable and board-to-board connections across a wide range of electronic applications.

As a trusted PCB Connector Supplier, RHT understands the challenges engineers face when selecting reliable interconnect solutions that support high-density layouts, repeated mating cycles, and easy assembly.

This article explores the key features, applications, and advantages of Box Header Connectors & Ejector Header Connectors in modern electronic systems.

What Are Box Header Connectors & Ejector Header Connectors?

Box Header Connectors are shrouded pin headers designed to provide secure, keyed connections for ribbon cables and IDC connectors. The enclosed housing ensures proper alignment, protects contacts, and minimizes the risk of mis-mating during installation.

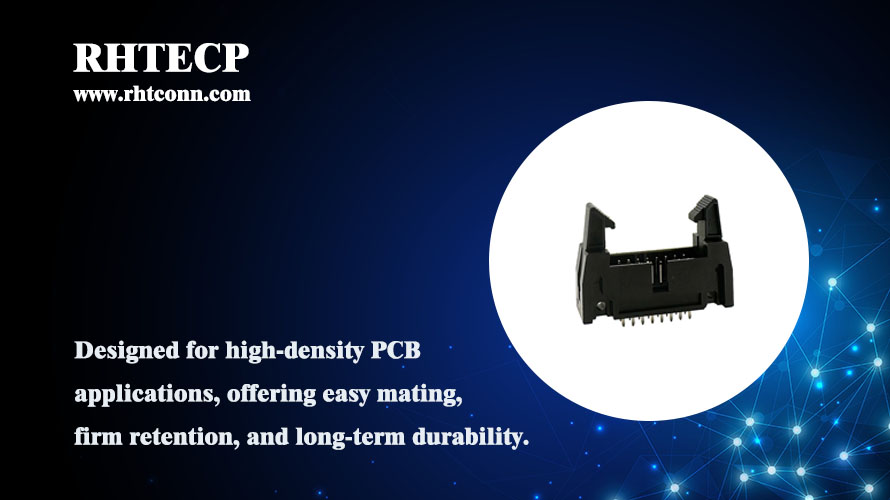

Ejector Header Connectors are enhanced box headers equipped with integrated ejector levers. These levers allow users to safely and easily disengage IDC cables, reducing stress on the connector, cable, and PCB during maintenance or replacement.

Available in various pitches, pin counts, and mounting styles, these connectors are widely used in PCB assemblies where reliability, accuracy, and ease of operation are essential.

Key Terminology

Pitch:
Common pitches include 2.54mm, 2.00mm, and other industry-standard spacings, supporting both standard and high-density PCB designs.

Number of Positions:
Available in multiple pin counts to accommodate different signal and power requirements.

Mounting Type:
Offered in through-hole (THT) and surface-mount (SMT) configurations to suit different assembly processes.

Ejector Mechanism:
Integrated levers that enable controlled and damage-free cable removal, especially useful in high-cycle applications.

Application Scenarios: Where Are Box Header & Ejector Header Connectors Used?

1. Industrial Control Systems

Commonly used in PLCs, automation equipment, motor controllers, and industrial control boards requiring stable and vibration-resistant connections.

2. Consumer Electronics

Applied in printers, set-top boxes, home appliances, and gaming systems for reliable internal signal transmission.

3. Communication & Networking Equipment

Used in routers, switches, communication modules, and data transmission systems where secure IDC connections are essential.

4. Embedded Systems & IoT Devices

Ideal for embedded control boards, smart modules, and compact electronic designs requiring efficient PCB interconnection.

5. Testing & Measurement Equipment

Supports frequent cable connections and disconnections in test instruments, analyzers, and diagnostic systems.

Advantages of Using Box Header & Ejector Header Connectors

Secure & Reliable Connection:
Shrouded design ensures accurate alignment and stable contact performance.

Easy Cable Management:
Ejector levers allow quick, safe, and tool-free cable removal.

High-Density Compatibility:
Supports compact PCB layouts without compromising signal integrity.

Durable Construction:
Designed for repeated mating cycles, ensuring long service life.

Wide Design Flexibility:
Available in multiple pitches, pin counts, and mounting styles to fit diverse applications.

Next Steps: Selecting the Right Box Header or Ejector Header Connector

When selecting the appropriate connector, engineers should consider pitch size, pin count, mounting method, ejector requirements, and operating environment. Reviewing detailed specifications and working with experienced suppliers like RHT helps ensure optimal performance and long-term reliability in your PCB designs.

Frequently Asked Questions (FAQs)

1. What is the main function of box header connectors?
They provide secure, keyed PCB connections for ribbon cables and IDC connectors.

2. Why choose ejector header connectors?
They enable safe and easy cable removal, reducing stress on PCBs and connectors.

3. What pitches are commonly available?
Standard pitches include 2.54mm and 2.00mm, with various pin configurations.

4. Where can I source high-quality box header connectors?
RHT offers a comprehensive range of precision-engineered box header and ejector header connectors for industrial, consumer, and embedded applications.

Conclusion

Box Header Connectors & Ejector Header Connectors are essential components for reliable and efficient PCB interconnection in modern electronic systems. By understanding their structure, applications, and benefits, engineers can achieve secure signal transmission, simplified assembly, and long-term system stability.

Explore RHT Box Header & Ejector Header Connectors — where precision design meets dependable connectivity.
Perfect for industrial control, communication equipment, and embedded electronics.
