Reliable Networking Starts Here: RHT 10/100 BASE Modular Jack with Transformer (1x1 Tab-Down RJ45)

Reliable Networking Starts Here: RHT 10/100 BASE Modular Jack with Transformer (1x1 Tab-Down RJ45)

In today’s connected world, the foundation of every network lies in high-quality, high-reliability physical interfaces. At RHT, we are

proud to offer a robust and cost-effective solution for Ethernet connectivity with our RHT+ 10/100 BASE Modular Jack with

Transformer — a 1x1 Tab-Down RJ45 connector designed for stable signal transmission and EMI protection.

Optimized for Fast Ethernet Applications

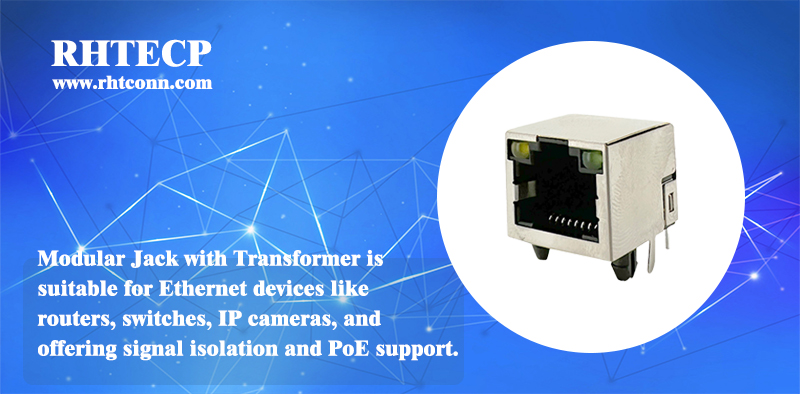

This integrated RJ45 connector features a built-in transformer (magnetics) for 10/100 Mbps data rates. It simplifies PCB layout,

reduces part count, and enhances signal integrity, making it an ideal choice for networked devices and embedded systems.

Key Features:

• Integrated Magnetics – Ensures proper signal coupling and isolation

• 10/100 Mbps Ethernet – Compatible with Fast Ethernet standards

• 1x1 Tab-Down Design – Compact and space-efficient layout

• LED Options Available – Visual indicators for link/activity status

• Excellent EMI Performance – Built-in shielding reduces interference

• RoHS & REACH Compliant – Eco-friendly and industry-certified

Applications:

The RHT Modular Jack with Transformer is trusted across a wide range of sectors and devices that require stable Ethernet

communication:

• Networking Equipment
       Ideal for use in routers, switches, firewalls, and media converters, where reliable LAN connections are critical.

• Industrial Ethernet Systems
       Integrated into PLCs, SCADA modules, motor controllers, and factory automation devices that rely on rugged and

  interference-resistant Ethernet interfaces.

• Consumer Electronics
       Used in smart TVs, streaming boxes, gaming consoles, and home gateways that require stable wired connectivity.

• IP Surveillance &Security
       Perfect for PoE IP cameras, video recorders, and access control panels demanding noise isolation and long-term

  reliability.

• VoIP & Communication Devices
       Applied in VoIP phones, intercoms, and conference systems that need clear and uninterrupted data transfer.

• IoT & Embedded Systems
       Deployed in smart sensors, edge devices, and development boards where compact form factor and integration

  efficiency are key.

• Smart Home & Building Automation
       Used in lighting controls, HVAC management, security systems, and energy meters for seamless device interconnection.

Why Choose RHT?

At RHT, we deliver connectors that combine performance, reliability, and value. Our modular jacks with built-in magnetics help

 customers reduce BOM cost and board space while ensuring stable network performance.
