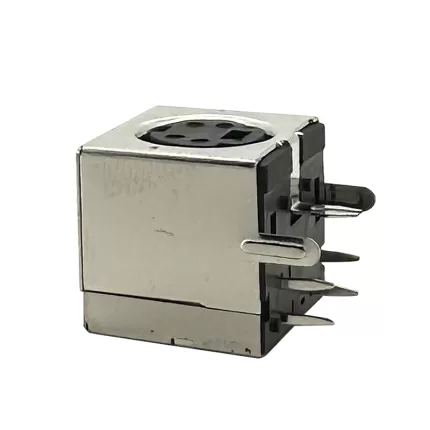

Mini Din Jack：RHTAY55

Series P/N:RHTAY55

Mini din connectors*Din connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Mini din connectors*Din connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Variety of Pin Counts: Mini DIN Jacks are available in different configurations, with typically 3, 4, 5, 6, or 7 pins. This allows them to be used for a wide range of applications, from audio and video connections to data transfer and power supply.

-Flexible Wiring Options: The number of pins in a Mini DIN Jack corresponds to the number of conductors that can be routed through the connector. This gives users flexibility in wiring and connection configurations.

-Data and Communication: They are also used in computer peripherals, such as connecting keyboards, mice, and printers, as well as in certain networking and telecommunications equipment.

-Power Supply: Some Mini DIN connectors are designed to handle low-power connections, making them useful for power transfer in various devices.

Applications

1.Audio and Video Equipment

2.Computer Peripherals

3.Gaming Consoles

4.Automotive Electronics

Specifications

Mini Din circular jack:

How to order Example:

RHTAY55-04-B-0

04=4 PIN Or-3 Pin,5 Pin,6 Pin,7 Pin,8 Pin

B=Black G=Green P=Purple
