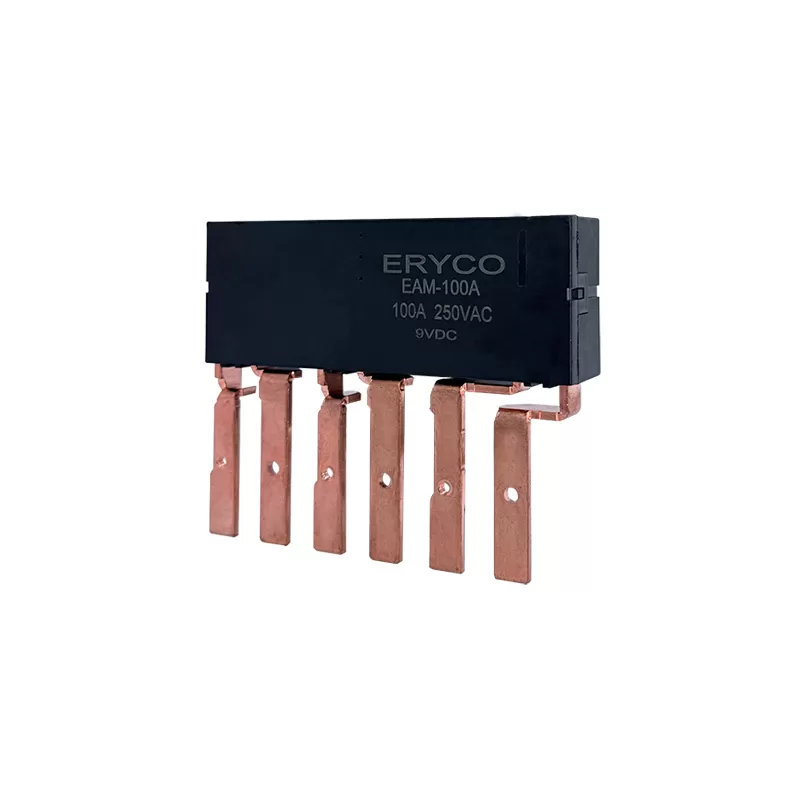

EAM-100A Magnetic Latching Relay
Product origin CHINA
Dimensions: 96.8 × 35.5 × 18.8 mm
Switching Current:100A
Switching Voltage: 250VAC max
Switching Power:25000VA
Contact Resistance:2mΩ(0.1A/6VDC)
Compliant with RoHS standard
EAM-100A 100A Magnetic Latching Relay for high current industrial applications.
Characteristics:
Insulation Resistance | 1000MΩ(at500vDC) | |
Dielectric Strength | Coil to contact | 4000VAC 1min |
Across open contact | 2000VAC 1 min | |
Operate Time | Max.20ms | |
Release Time | Max.20ms | |
Shock Resistance Functional | 100m/s2(10g) | |
Shock Resistance destructive | 1000m/s2(100g) | |
Ambient Temperature | -40~85℃ | |
Humidity | 98%RH,+40℃ | |
Vibration Resistance | 10-55Hz,1.5mm double amplitude | |
Termination | PCB mount or quick connect | |
Construction | Dust cover | |
Applications
1.Power electronics
2.Automation
3.Smart home
4.Communication

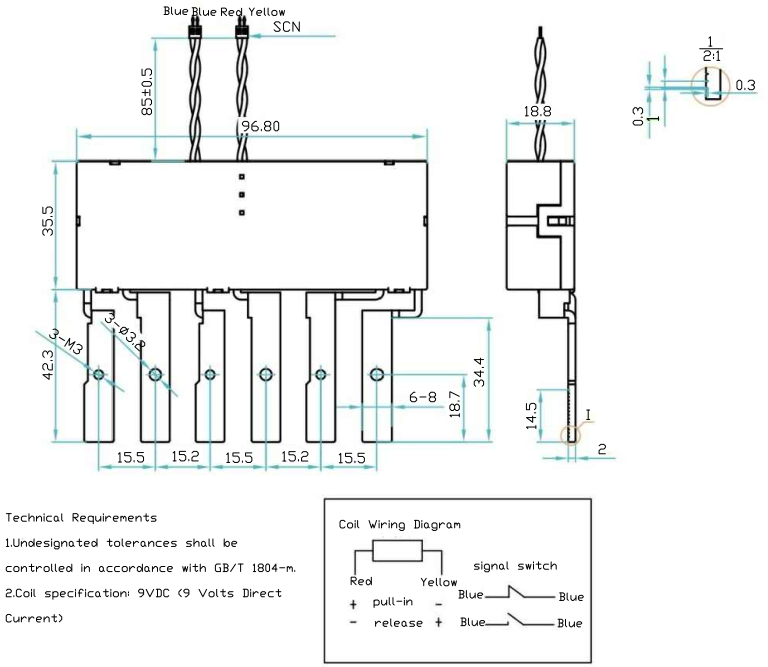

Dimensions
