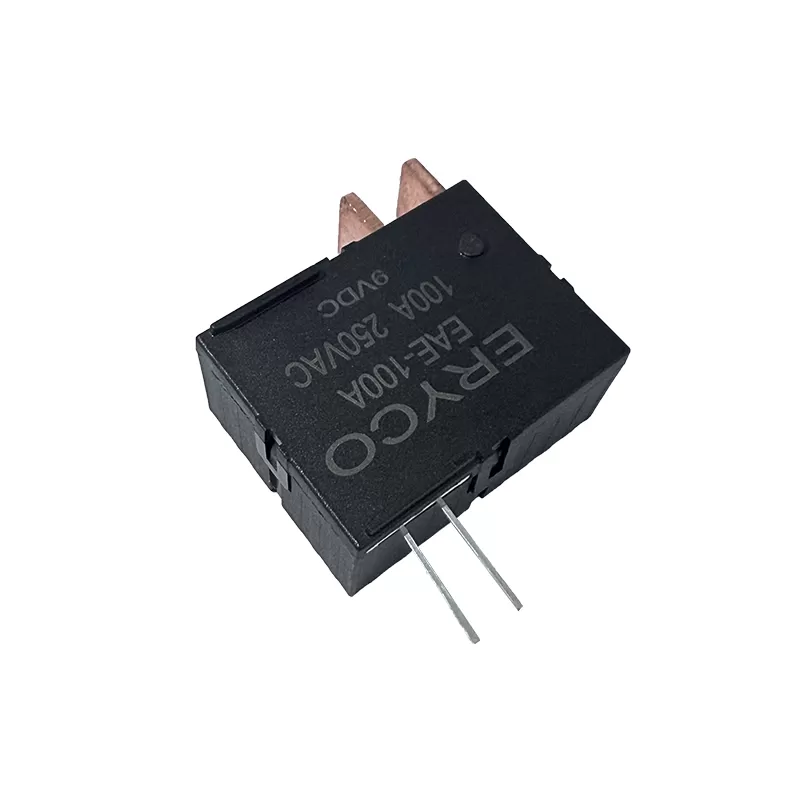

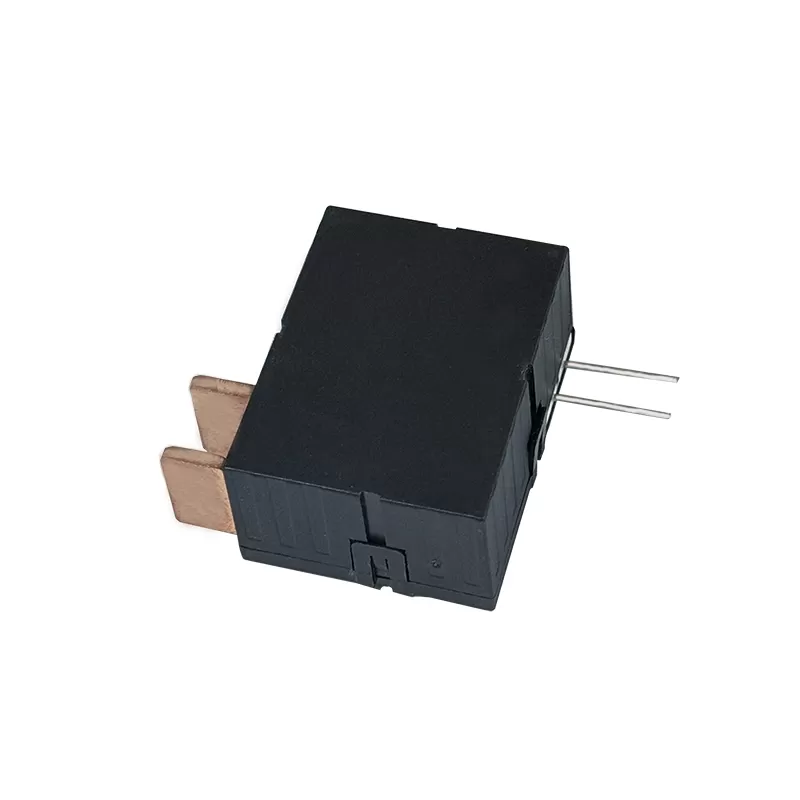

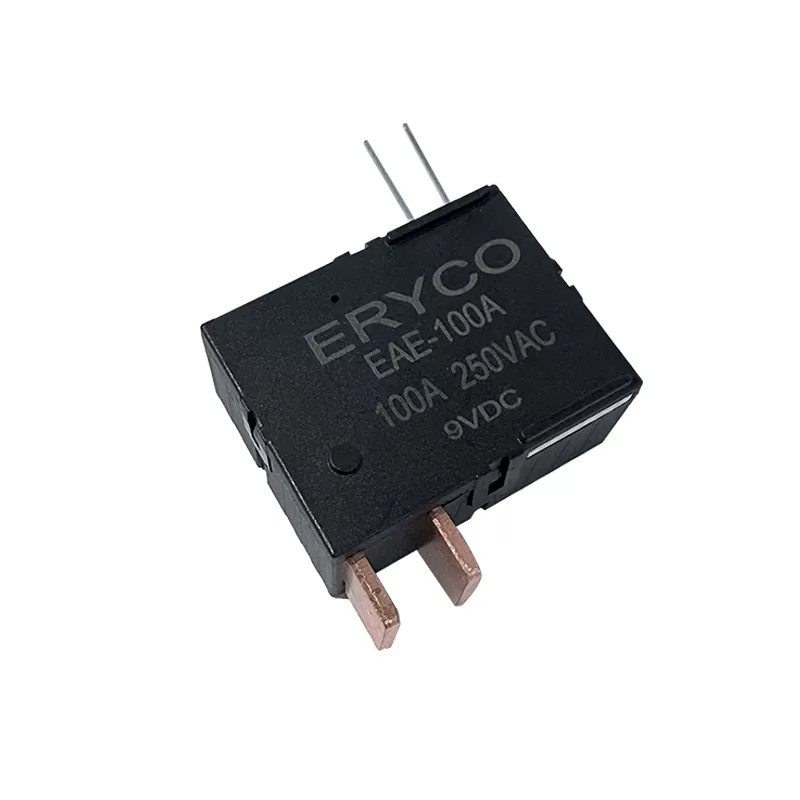

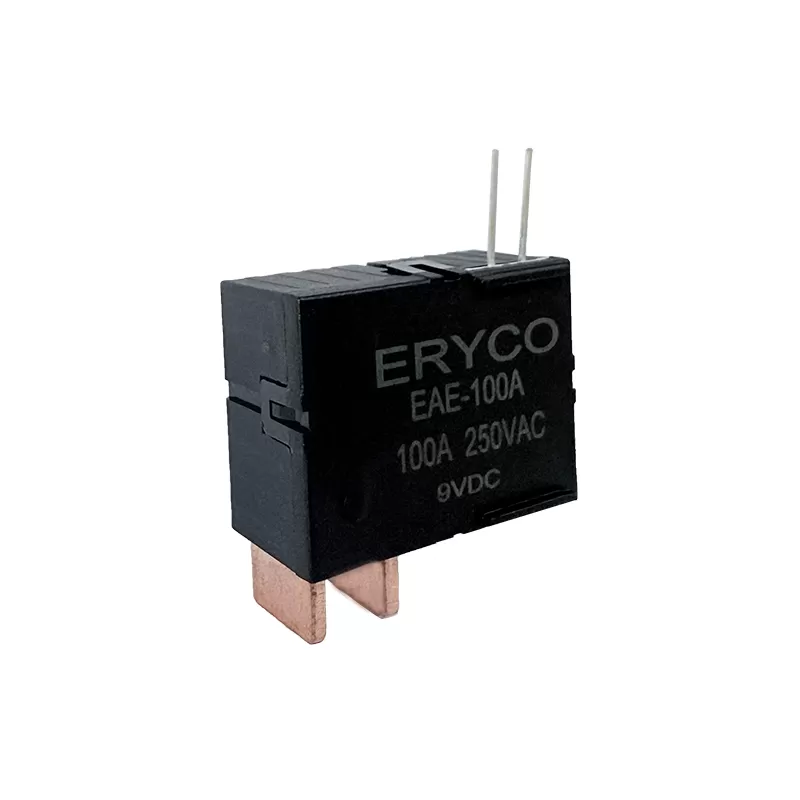

EAE-100A Magnetic Latching Relay
Product origin CHINA
Dimensions: 39 × 30 × 18.5 mm
Switching Current: 100A
Switching Voltage: 250VAC max
Switching Power:25000VA
Contact Resistance:2mΩ(0.1A/6VDC)
RoHS Compliance
EAE-100A 100A Single Relay, It is also widely used in power electronics, automation, smart home, communication, and remote control systems.
Characteristics:
|
| |
|
|
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Applications
1.Power electronics
2.Automation
3.Smart home
4.Communication

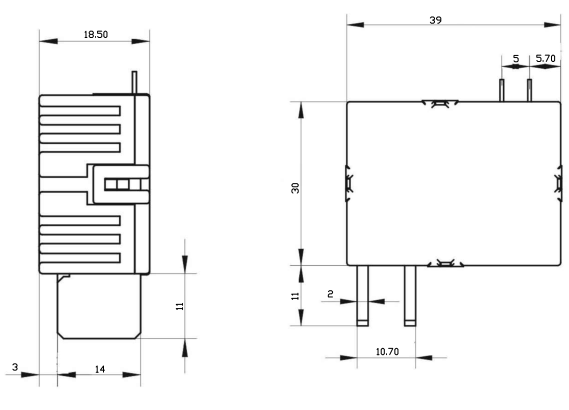

Dimensions
