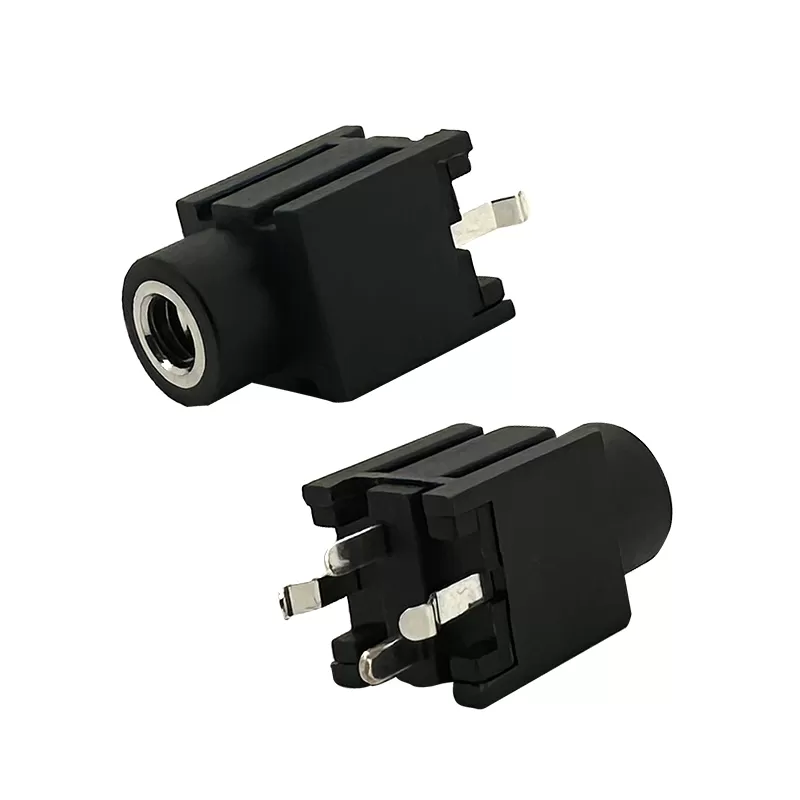

3.5mm Stereo Phone Jack :RHTAYSJ3.5-004B
3.5mm phone jack audio connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of 3.5mm phone jack audio connectors. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Typically, 3.5mm stereo phone jacks are of the TRS (Tip-Ring-Sleeve) type
-Carries the left audio channel.
-Carries the right audio channel
-Commonly used in headphones, earphones, audio cables, and various audio devices.
Applications
1.Personal Audio Devices
2.Computers and Laptops
3.Audio Equipment
4.Communication Devices
Specifications
Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5 A
Contact resistance: 0.03Ω, max
Insulation resistance: 100MΩ, min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20 N
Life: 50000 times
Operating Temperature:-30ºC~+70ºC
Material:
Housing/Cover:PBT
Center Pin Material:
Terminal 1,2 :Copper Alloy
Terminal 3,10/Bushing :Brass
Technical Documents
Please contact us for more information.Features
